Nano Vertical Platform Lift

The Atlas Nano Vertical Platform Lift combines a sleek, space-saving design with industry-leading safety standards, making installation easier and more cost-effective. Its compact tower leaves plenty of room for others to use the stairs when not in use, ensuring accessibility without obstruction. Built with automotive-grade steel and customizable for both residential and commercial spaces, it provides a durable, reliable lifting solution tailored to your needs.
Drive System
Acme Screw Drive
Maximum Lift Height
Up to 64 inches (162.5 cm)
Codes & Regulations
CSA B44 (Section 7) & ASME 17.1
Maximum Stops
2
Cab Configuration
180 degree
Dimensions
36 x 54 x 32
Maximum Capacity
Up to 800 lbs (363 kg)
Travel Speed
9 FPM (0.05 m/s)

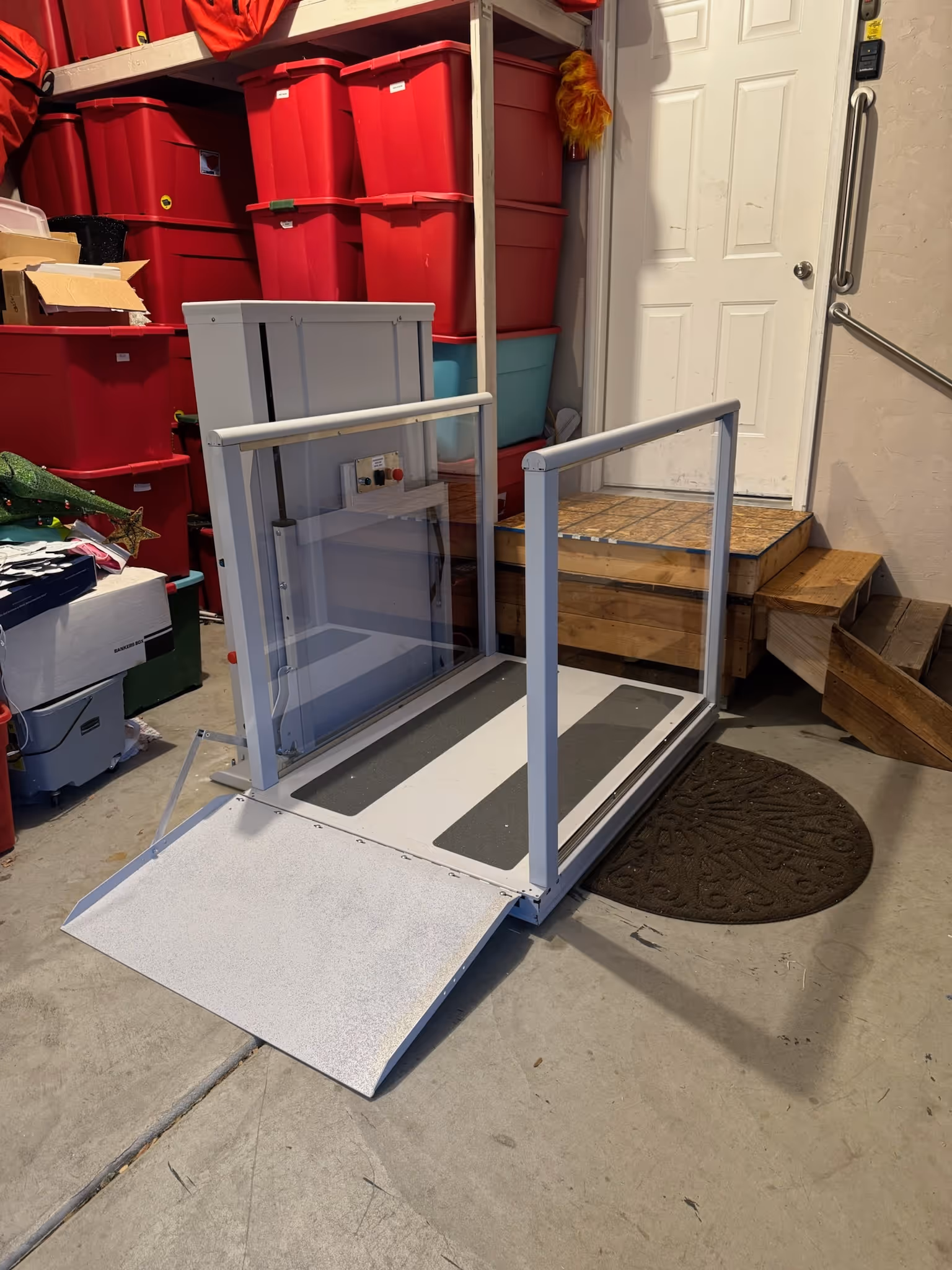

Mini Vista Vertical Platform Lift

The Mini VISTA Vertical Platform Lift is a rugged, compact lift designed for residential and commercial applications, both indoors and outdoors. Manufactured in North America to top safety standards, it offers effortless installation and reliable performance and integrates seamlessly without the need for a mechanical room, drain, or overhead clearance.
Drive System
Acme Screw Drive
Maximum Lift Height
Up to 30 inches (76.2 cm)
Codes & Regulations
CSA B613, B355, ASME 17.1, ASME 18.1
Motor
1.5 HP, 24VDC
Configurations
180 degree
Controls
Constant Pressure Rocker Switch with E-Stop
Maximum Capacity
Up to 750 lbs (454 kg)
Travel Speed
12 FPM (0.06 m/s)

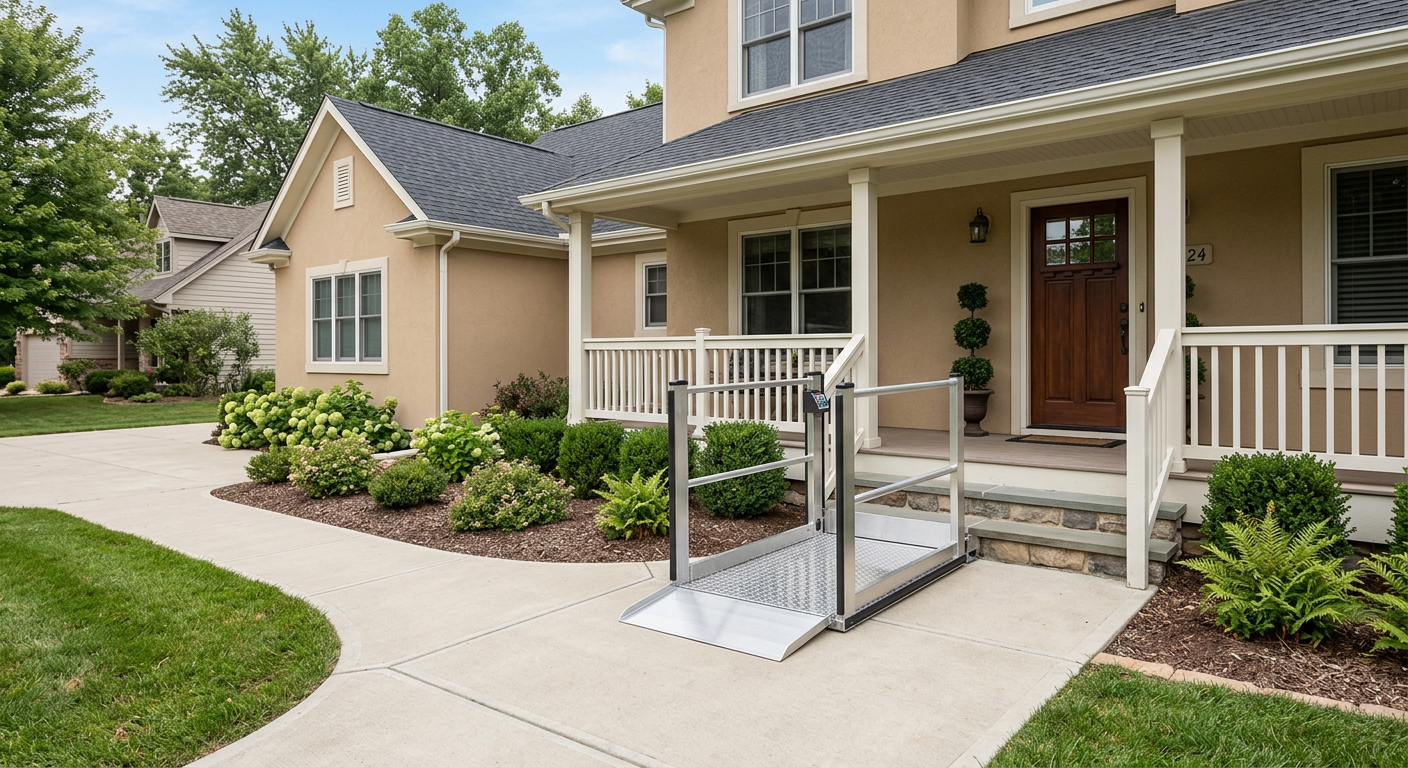

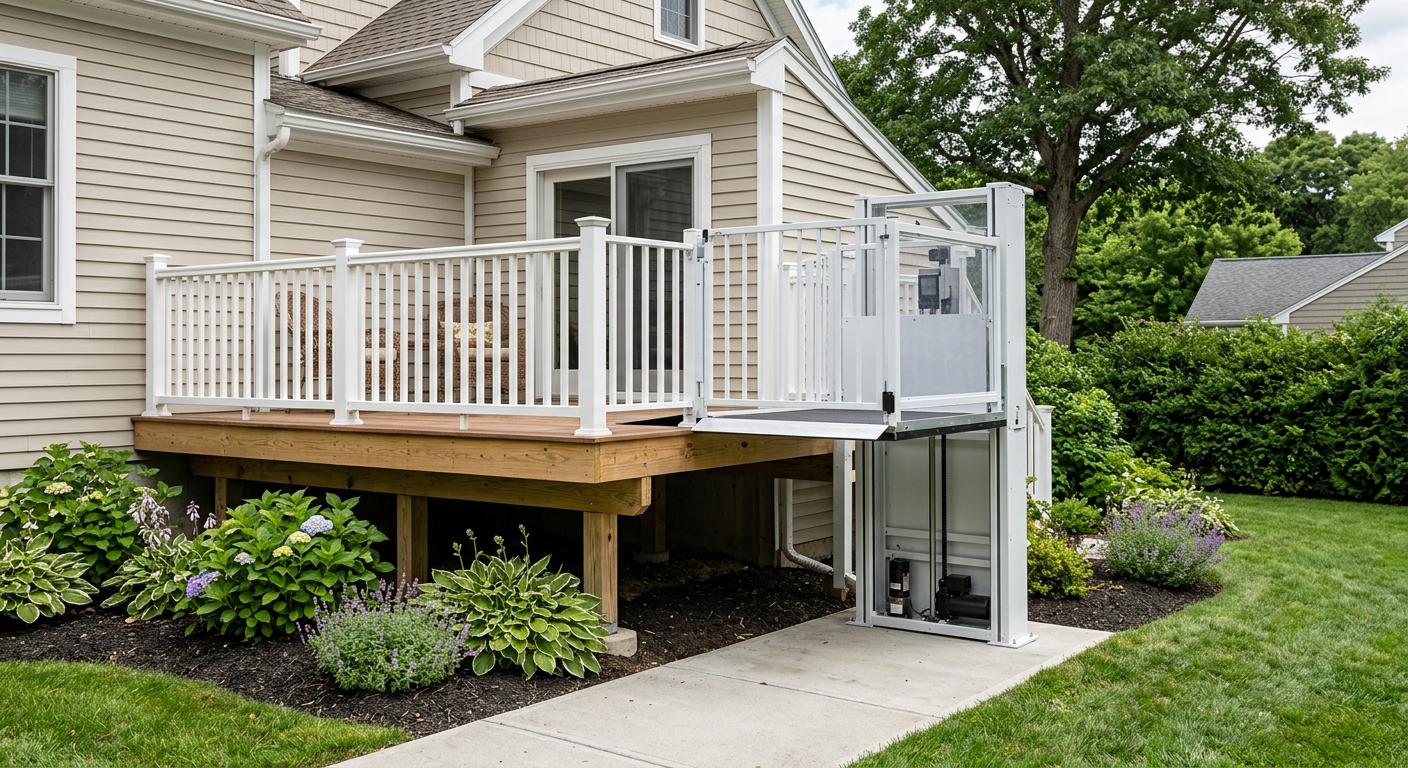

A Harmar Vertical Platform Lift functions like a self-contained elevator, featuring four enclosed sides with an open top and a built-in lift motor for safe, user-friendly operation. Designed for both residential and commercial use, it can accommodate up to 600 lbs at home and 750 lbs in commercial settings, carrying either two passengers or one person in a wheelchair. The lift includes entry and exit doors at different levels, with a safety release mechanism that allows the passenger to exit securely upon arrival. Built for reliability, it operates quietly and smoothly, prevents crashes unlike standard elevators, and allows for easy passenger extraction in the rare event of a malfunction.
Harmar Highlander II Vertical Platform Lift Spec Sheet

The Highlander II vertical platform lift provides a safe, convenient way to travel between levels while staying in your scooter, manual wheelchair, or powerchair. Designed for residential and commercial applications, it offers multiple heights and dimensions, reaching up to 14’ to fit various lifestyles and eliminate the challenge of stairs.
- Guardian system with 4 LED lights as display codes for the lift's status, operation, and maintenance needs
- SmartSense PC board that monitors motor temperature, cycle count, battery status, and other features.
- Steady Drive’s high lead ACME screw rotates 75% slower than the competition for reduced vibrations.
- ReadyUPS as an optional "battery backup" system that automatically activates in the event of a power outage
- Easy-to-use Big Blue Paddle switches for a stable, smooth, and quiet ride. Note: This feature is not available on three-stop units.
- Heavy-duty lifting for you and your mobility device up to 14’
- Provides access to decks, porches, garage entry, second-story entry, and elevation between floors
- Residential and commercial applications
- Capacity: 750 lb
- Speed: 10.4 FPM
- Drive: ACME screw90V 2/3 HP fully sealed DC gear motor
- Power: 120V AC15 AMP circuit breaker
